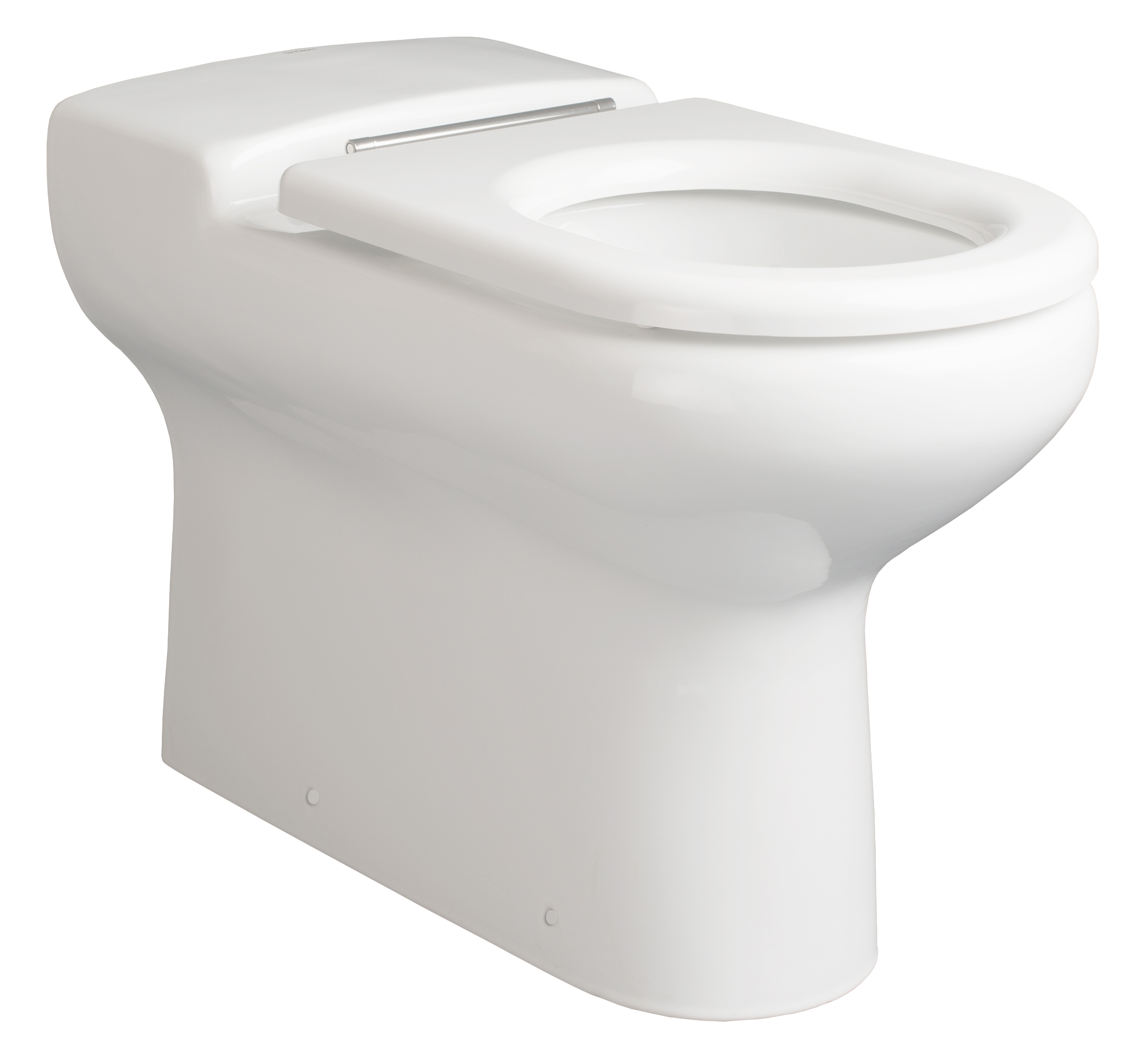

Chartham Rimless Back to Wall 700 Projection Toilet Pan - CHWC105

Chartham Rimless Back to Wall 700 Projection Toilet Pan

Stock Code: CHWC105

£316.95 ex VAT

SanCeram Chartham Rimless Back to Wall Toilet Pan with extended projection to 700mm for HBN compliance.

• Sleek easy to clean design

• 700mm projection pan compliant with HBN / SHTM

• 480mm (including seat) raised height pan compliant with HBN / SHTM

• Rimless flush design giving bacteria nowhere to hide

• Rimless technology offers an effective silent flush using less water

• Manufactured from high quality vitreous china to BS 3402

• Comes with 25 year manufacturers guarantee

• Please note seat is not included, see options below if required

• Delivery 2-3 days

Add to Basket

Rimless WC

Water Saving

HBN/SHTM

Specification
Delivery
Product Guarantee
Technical

Fixing
Supplied with floor fixing pack

Size
365W x 700L x 455H

Finish
Alpine White

Material
Vitreous china to BS 3402

Flushing
Compatible with concealed cistern, tested with flush volume as low as 4/2.6ltr dual flush for water saving - available here

Seat options
Chartham toilet seat only in white - available here
Chartham toilet seat only in blue - available here
Chartham toilet seat only in dark grey - available here
Chartham rimless soft close toilet seat and cover in white - available here

2 - 3 working days

25 years

All Files

Here you can download the technical documents that you may require to specify your sanitaryware. Data Sheets, CAD Blocks, BIM files and images can all be downloaded or saved to your personal project folders.

Please register and log in to gain access to our full technical library.

Data Sheet - CHWC105

Image - CHWC105

Technical Drawing - CHWC105

BIM File - CHWC105

CAD Block - CHWC105
