SanCeram Chartham wall mounted WC toilet pan

Chartham wall hung toilet pan at The Forest School

Chartham wall hung toilet pan at The Cooper Kettle

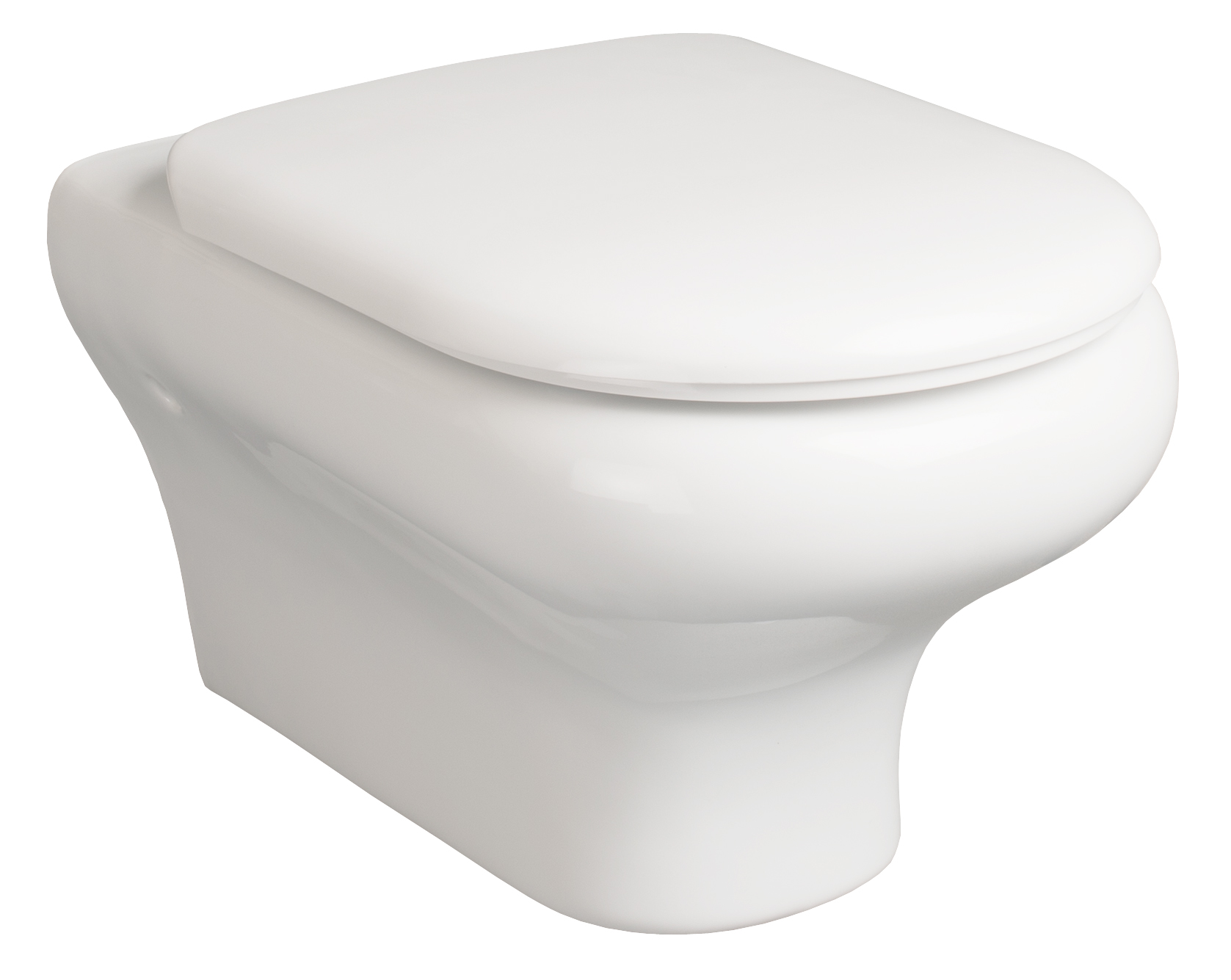

Chartham Wall Hung Toilet Pan

Stock Code: CHWC101

£93.50 ex VAT

Our SanCeram Chartham Wall Hung Toilet Pan is a great all round WC suitable for all sectors. With a clean and sleek design it will fit into any washroom environment.

• Sleek, easy to clean design lends itself to both traditional and modern washroom projects

• Shorter projection ideal for smaller spaces

• Wall hung installation reduces dirt traps

• Manufactured from high quality vitreous china to BS 3402

• Comes with 25 year manufacturers guarantee

• Meets all BS EN 997:2018

• Please note seat is not included, see options below if required

• Delivery available in 2-3 working day

Add to Basket

Specification
Delivery
Product Guarantee
Technical

Fixing
Supplied with fixing pack to be used in conjunction with one of the following:
SanCeram support brackets for wall hung WC pans - TSWC117
In wall frame with concealed cistern and dual flush square push button - CIST112
In wall frame with concealed cistern and dual flush oyster push plate - CIST113

Size
370W x 520L x 330H mm

Finish
Alpine White

Material
Vitreous china to BS 3402

Flushing
Compatible with concealed cistern, tested with flush volume as low as 4/2.6ltr dual flush for water saving - available here

Seat options
Chartham standard seat & cover – available here
Chartham soft close seat & cover – available here

2 - 3 working days

25 year

All Files

Here you can download the technical documents that you may require to specify your sanitaryware. Data Sheets, CAD Blocks, BIM files and images can all be downloaded or saved to your personal project folders.

Please register and log in to gain access to our full technical library.

Data Sheet - CHWC101

Image - CHWC101

Technical drawing - CHWC101

BIM File - CHWC101

CAD Block - CHWC101
