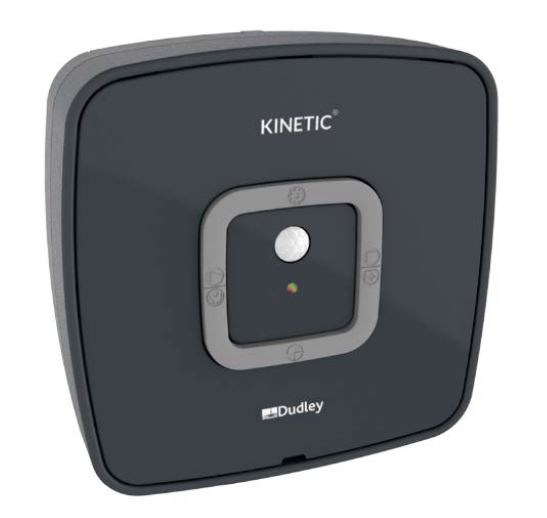

Kinetic Urinal Room Sensor Control - Grey

Stock Code: URIN124

£209.81 ex VAT

The Thomas Dudley Kinetic intelligent urinal flushing control room sensor in Grey offers flexible installation allowing the unit to be installed mounted into wall, ceiling or as part as exposed pipework.

• Infra-red sensor ideal for use with automatic cisterns and multiple station urinals

• Sensor detects user movement in the washroom and fills the cistern to flush after a pre-set time based on the traffic in the area

• Sensor detects up to 5m

• Fast fill of the cistern to capacity reduces scale build up

• Hygiene mode delivers a flush every 60 mins (max) or 12 hours if no users detected

• Economy mode delivers a flush every 40 mins (max) or 24 hours if no users detected

• Can be installed into pipework, walls or ceiling

• Control box can be installed up to 1m away from the solenoid valve

• Fitted with a 6L/min flow restrictor

• Tamper proof design

• Battery or mains powered

• Delivery 3-5 days

Water Saving
Water Saving
Education
Education
Sensor
Sensor

Size
Control box: H118mm x W118mm x D33mm Solenoid box: H98mm x W100mm x D50mm

Technical Specification
Working pressure 0.1 - 10 bar

Fixings
Complete with Kinetic solenoid valve box and compression adaptor Includes flush mounting kit

Standards
Manufactured under BS EN ISO 9001
Supports BREEAM

Product variation
Kinetic Urinal Sensor Flush Control, White URIN123 – available here

3-5 working days

3 years
