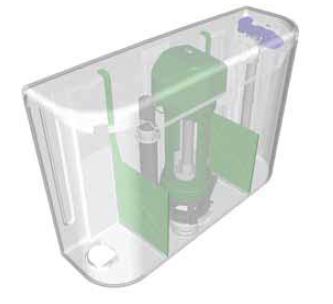

Concealed Single Flush Sensor Cistern

Stock Code: CIST108

£267.38 ex VAT

Thomas Dudley battery powered, Concealed Single Flush WC Cistern with sensor operation, ideal for where increased hygiene is required.

• 6/4 ltr dual flush can be easily converted to 5/3 or 4/2.6ltr flushing before or after installation

• Push-fit flush pipe with a one piece hanging bracket

• Supplied pre-assembled for quick and easy installation

• Top access

• Side inlet

• Compact design fits neatly into a duct

• WRAS approved internals

• Available for next day delivery

Add to Basket

Doc M

Water Saving

HBN/SHTM

WRAS

Specification
Delivery
Product Guarantee
Technical

Push Button Features
Sensor surround is 100mm diameter
Compact control box fits neatly onto the rear panel into which the sensor is installed
400mm long sensor cable
Powered by 4 x AA batteries

Power Options
Transformer for mains power (240V) CIST110 – available here

Material
High impact polystyrene - Cistern
Chrome effect finish - Sensor surround

Standard
Manufactured under BS EN ISO 9001 and BS EN ISO 14001
Approved by the European Water Label Scheme
Supports Code of Sustainable Homes
Supports BREEAM

Available for next day delivery

5 years
