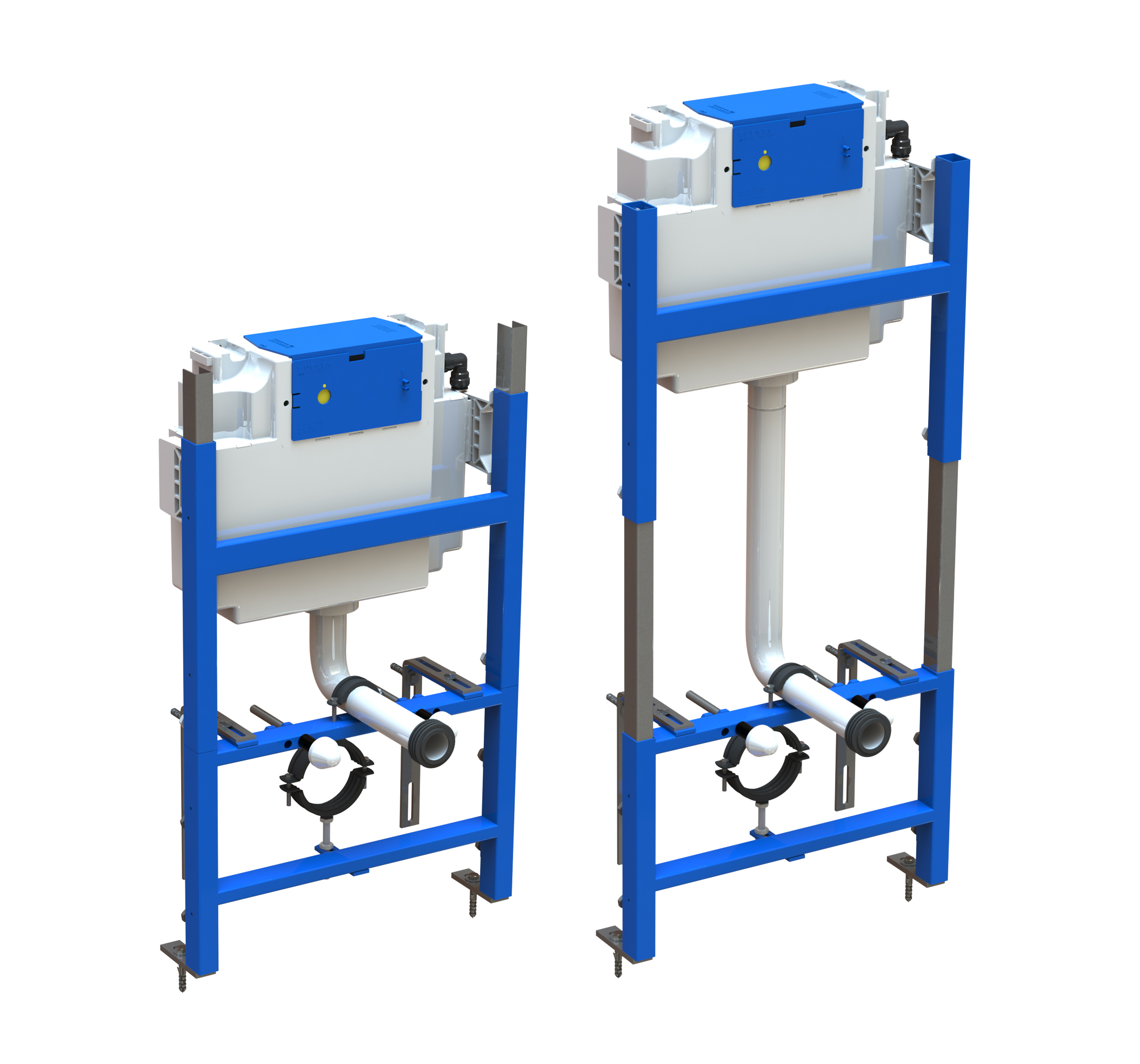

WC in Wall Support Frame with Dual Flush Cistern and Oyster Push Plate

Stock Code: CIST113

£283.10 ex VAT

In wall WC Frame and Cistern incorporating support frame for wall hung WC, includes dual flush cistern with oyster push plate.

• Wall Hung WC support frame load tested to 400kg

• 6/4 ltr dual flush can be easily converted to 5/3 or 4/2.6ltr flushing

• Front or top access

• Frame height adjustable from 820 – 1120mm

• Frame legs adjust to offer WC pan height fixing flexibility

• Wall & floor fixing brackets can be fixed through 180 degrees & 360 degrees respectively to aid installation flexibility

• Flushbend & WC pan connector clamps

• WRAS approved internals

• Conceals all pipework for a clean, clutter free finish

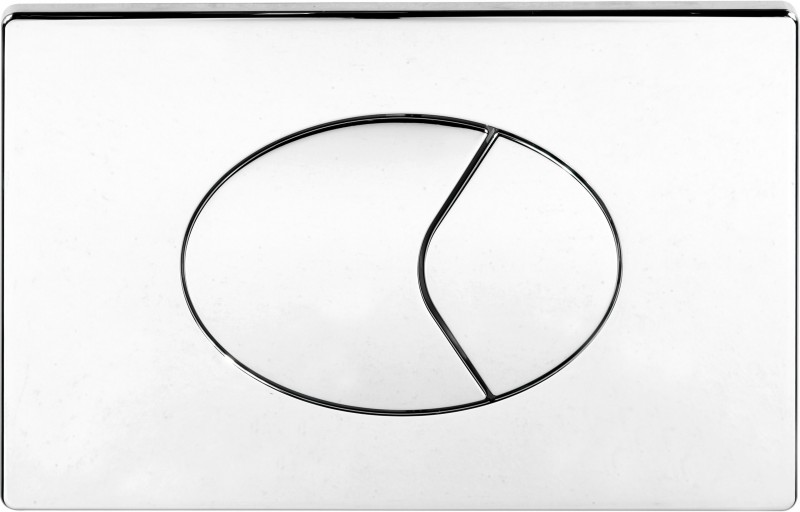

• Modern, Oyster push plate sits seamlessly within the wall

• Delivery 1-2 weeks

Add to Basket

Water Saving

WRAS

Specification
Delivery
Technical

Push button Features
Air tubes to push button up to 750mm away from cistern Material
High impact polystyrene

Standard
The cistern conforms to BS EN 14055:2010

1-2 weeks
